Proven, Trusted Choice for Customers Worldwide

Hear firsthand from satisfied users about the ONE Core's incredible reliability and convenience.

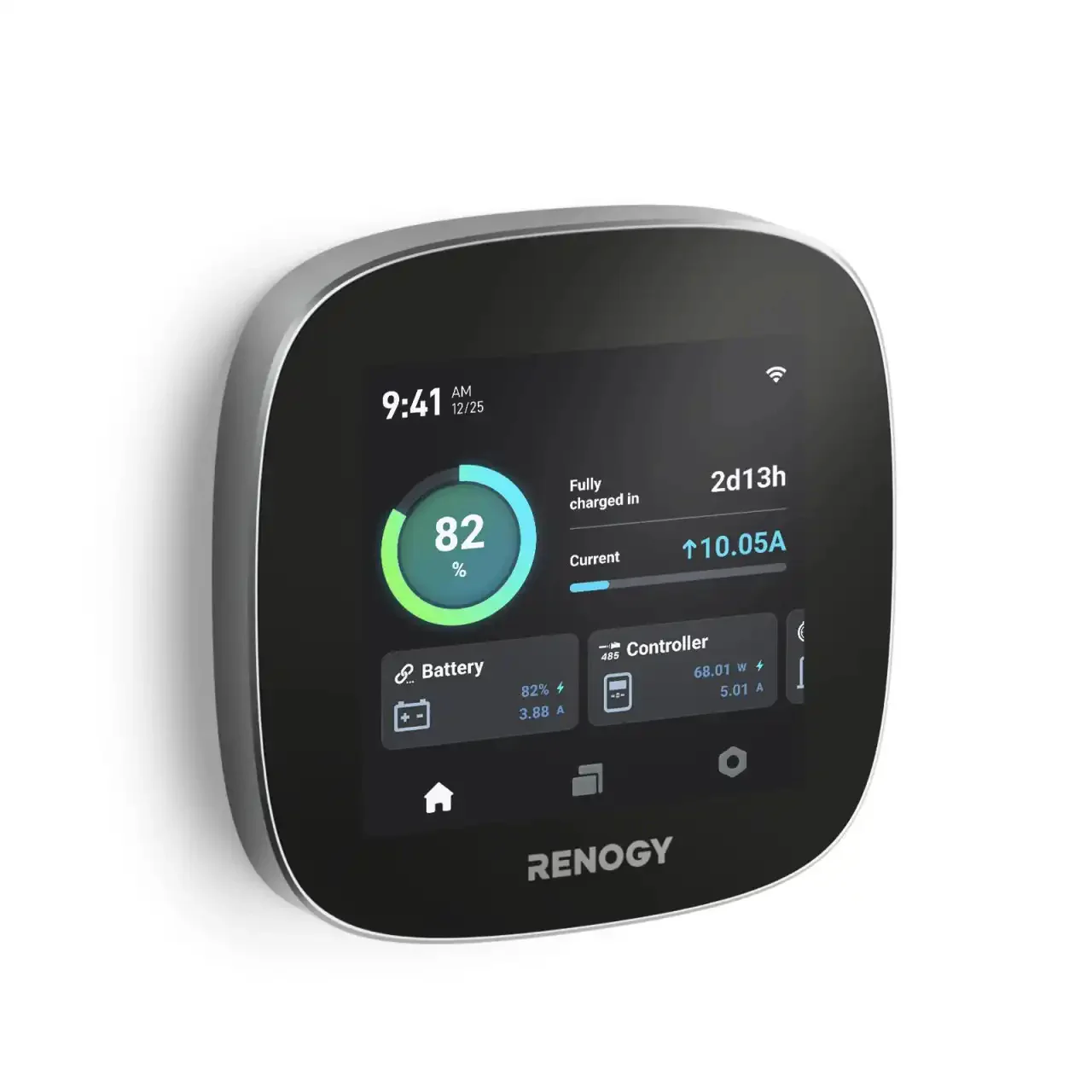

Introducing Renogy ONE Core

Unboxing, Testing and Review

Renogy ONE Core Install & Review

Renogy Solar Monitor & Rv Leveling

Discover the Power of Renogy ONE Core

Renogy ONE Core

Install in a small Coachman Freedom Express 259FKDS Travel Trailer

Energy Data Analysis

Remote Monitoring

Adaptable Devices

Energy efficiency at your fingertips

Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.

Distance is not a problem

Remote energy monitoring in various scenarios.

One Command Center for Your Renogy Devices

Click to Download the full compatible devices list

Need leveling for more comfort?

ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience.

Built-in 6-axis leveling sensor

Highly accurate and responsive detection of changes in orientation and rotational movement.

Real-time RV leveling status

Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.

Smart Automation

Security

Make it a smart home

ONE Core also serves as a smart home hub, allowing you to connect your smart home appliances like door entry alert or climate sensors, enjoy added convenience and security of home automation.

Peace of mind with 24/7 security

Detect unexpected motions occurring in your RV, keep you alert and informed of anything suspicious.

Effortless installation

Step 1

Complete a hole using a 55mm diameter punch and get all components of the device stand.

Step 2

With an embedded horizontal bubble, it's easy to achieve the horizontality of the device and avoid repeated leveling.

Step 3

Rotate, click clack, it's done.

Installation on Table

Step 1

Pull out the holder layer of the box.

Step 2

Raise up the support layer.

Step 3

Push back the holder layer and place One Core on it.

Renogy ONE M1 vs Renogy ONE Core

Learn more

Connect with Renogy customers.

Go to Power Plus Community

Still have questions?

Ask our specialist

Package Includes

NOTE:

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!

Renogy ONE Core 1 x	Quick Guide 1x
Power Cable 5m	Mounting Screw M3.5 x14mm x4 (1 extra)

ELECTRICAL DATA
Operating Voltage	8-60 VDC (5 VDC for USB Type-C)
Power Consumption at 12V	Operating, WiFi On, 100% illumination: 3.2 W Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9 W Off, logger still active: 1.5 W
Communication	Wi-Fi (IEEE 802.11b/g/n 2.4 GHz) Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485
Touch Screen	4 inches (480 x 480p)
Leveling Range and Accuracy	±89°, 0.1°
GENERAL DATA
Model	RSHGWSN-W02W-G1
Operating Temperature	-4℉ to 158℉ (-20℃ to 70℃)
Operating Humidity	0% to 95% RH
Operating Altitude	Less than 5000m above sea level
Installation	Flush mount or place on a table
Dimensions	4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight	0.28 lb (128g)
Certification	CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty	2 years

1. What devices are compatible with Renogy ONE Core？

2. What are the differences between Renogy ONE Core and Renogy ONE M1？

3. How to I connect Renogy ONE Core with different types of batteries to set up a battery monitoring system?

The Renogy ONE Core can function as a power monitor when it is connected to Renogy batteries that support Bluetooth (built-in or with external BT-1/BT-2 modules) and RS-485.

4. Does Renogy ONE Core support RV-C？

No, the Renogy ONE Core does not support RV-C communication.

5. How can I check the RV leveling status?

You can check it locally on Renogy ONE Core or remotely on the DC Home app when the app is paired with the Core via Bluetooth.

6. What is the operational altitude range for the Renogy ONE Core?

It can work normally at altitudes below 5000 meters.

7. Does Renogy ONE Core come with a shunt?

No, it does not come with a shunt. Please stay tuned for further updates on this in the near future.

8. Does Renogy ONE Core support 5 GHz Wi-Fi network?

No. It supports 2.4 GHz Wi-Fi only.

9. Does Renogy ONE Core support WPA3 encrypted Wi-Fi networks？

No. It does not support WPA3.

10. Is Renogy ONE Core compatible with third-party Zigbee 3.0 devices?

We cannot guarantee the compatibility between Renogy ONE Core and third-party Zigbee 3.0 smart home devices. Therefore, it is recommended to use smart accessories that have been authorized by Renogy with your Renogy ONE Core, such as Smart Plug, Motion Sensor, Door & Window Sensor, and Smart Relay.

11. Do the configured smart scenes in Renogy ONE Core still work when it is offline?

Yes, the configured smart scenes in Renogy ONE Core will still work when it is offline. Renogy ONE Core utilizes the Zigbee 3.0 protocol to establish wireless connections with smart accessories. When you set up a smart scene for home automation, the configuration is saved within the system of Renogy ONE Core. This means that even if the Wi-Fi network is unavailable, Renogy ONE Core can still communicate with and control smart accessories through Zigbee 3.0.

12. What kind of power systems can Renogy ONE Core work with?

Renogy ONE Core can be supplied by a 5V DC source via Type-C or an 8V to 60V DC source via the power cable. As for energy monitoring, Renogy ONE Core allows you to monitor power devices rated at 12V DC, 24V DC, or 48V DC.

13. How long will Renogy ONE Core store the data locally?

Renogy ONE Core can store data locally for 30 days

14. What are the leveling requirements for the initial installation of Renogy ONE Core in an RV?

During the initial installation, it is important to park your RV on a level surface. Ensure that the Renogy ONE Core's bubble level is positioned in the center during the installation process. This will help to achieve proper leveling and ensure optimal performance.

15. Is it normal for the RV leveling data in Renogy ONE Core to have minor fluctuations when the vehicle's engine is running but the vehicle is not moving?

Yes. This is because the built-in 6-axis sensor in the Core is capable of detecting vibrations caused by the vehicle's engine. Therefore, slight variations in the RV leveling data can occur under such conditions. As long as the fluctuations are small and do not affect the overall accuracy of the leveling calibration, it is considered normal operation.
